Getting Started
Everything you need to get started with your B-130A can be found in the below online manual. If you still have questions you can browse our FAQ section or reach out to our support team directly with the help button in the bottom right hand corner.
Getting stuck operating your product or attempting to perform a certain function? Check out our App Support and Battery Support categories which have a collection of detailed how-to guides and troubleshooting available.
LED Indicators and Beeps
Status |
LEDs |
Beep* |
|
Powered On |
All 3 LEDs turn on together and then turn off one by one |
Welcome Chime |
|
Started Charging |
Red LED blinks for 5 seconds |
Beeps once |
|
Charging |
Red LED is on |
None |
|
Fully Charged |
Green LED is on |
None |
|
Bluetooth Connected |
Blue LED is on |
None |
|
Low input voltage warning/high input voltage warning |
Red and Green LED blink together |
Beeps twice (Repeated) |
|
Overheated warning |
Red LED and Green LED blink one after another |
Beeps twice (Repeated) |
|
*Beeping can be disabled over Bluetooth using the BlackVue app.
**Welcome chime and beeping sound for overheated warning cannot be muted for safety reasons.
Warranty
All BlackVue B-130X battery packs purchased in Australia from authorised BlackVue dealers come with a 2-year limited hardware warranty from the original date of purchase.
In the unlikely event you experience a hardware fault with your accessory, it is best to contact your original retailer directly, or alternatively you can contact our support team directly on support@blackvue.com.au or by calling us on 1300 967 777 Monday-Friday 9am-3pm (AWST). You can also raise a warranty claim with us directly below.
Specifications
Key Specifications | |
Model Name |

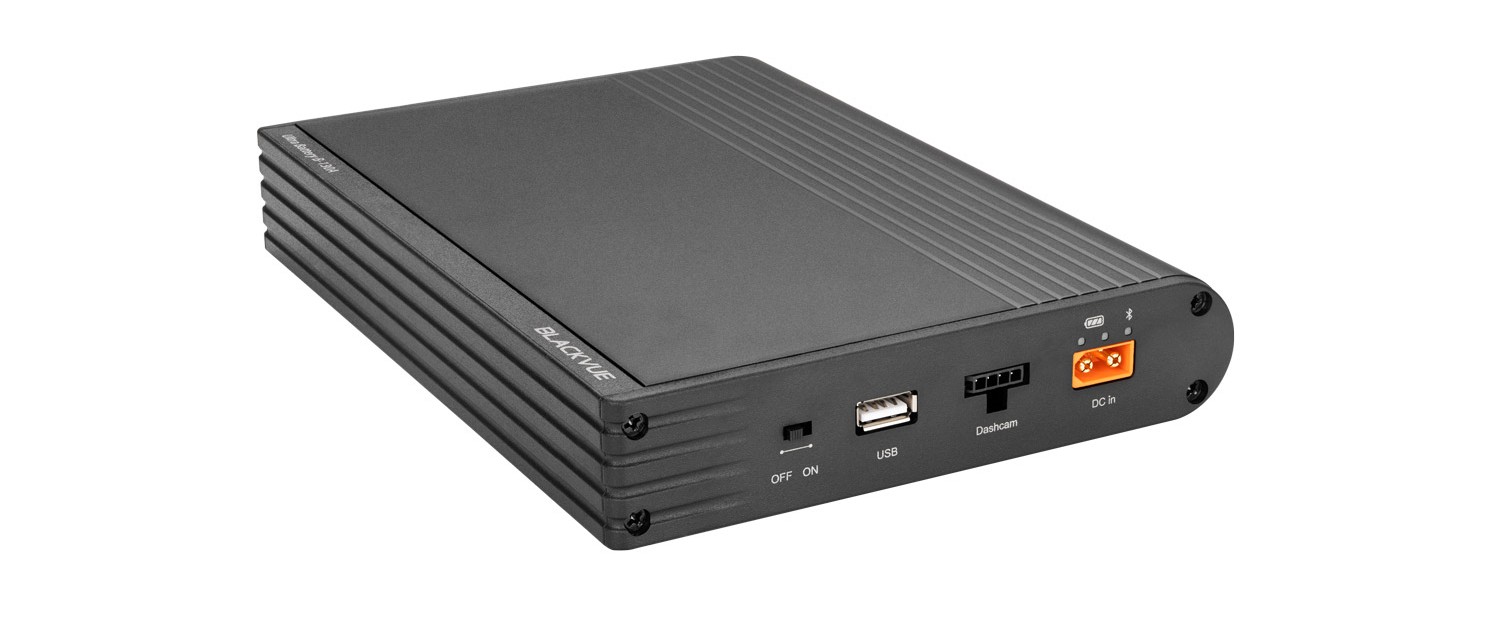

Power Magic Ultra Battery B-130A |
Colour / Size / Weight |
Black / Length 206 mm x Width 152.7 mm x Height 33.6 mm / 1.52 kg |
Capacity |
12.8 V / 7,500 mAh / 96 Wh |
Battery Cell Type |
Lithium-iron Phosphate (LiFePO4) |
Input Voltage |
12V system: Cigarette lighter plug: 11 V–18 V / 7.2 A (max) Hardwired: 11 V–18 V / 13.0 A (max) 24V system: Cigarette lighter plug: 22.5 V–30 V / 3.6 A (max) Hardwired: 22.5 V–30 V / 6.4 A (max) |
Charging Voltage / Current |
Cigarette lighter plug: 14.2 V / 6.4 A Hardwired: 14.2 V / 13 A |
Output Voltage / Current |
Dash cam port: 11 V–14.2 V / 2 A (max) USB port: 4.75 V–5.2 V / 2 A (max) |
Charging Time |
Cigarette lighter plug (standard 5 A charging): Approx. 90 mins Hardwired (rapid 9 A charging): Approx. 50 mins |
Usage Time (Approx.) |
BlackVue 1-CH = Up to 39 hrs BlackVue 2-CH = Up to 22 hrs |
Operating Temperature |
Charging Temperature: 0 °C − 45 °C (32 °F − 113 °F) Discharging Temperature: -10 °C − 60 °C (14 °F − 140 °F) Storage Temperature: -20 °C − 45 °C (-4 °F − 113 °F) |
Temperature Cut-Off |
High temperature: Approx. 80°C (176°F) Low Temperature: Below 0°C (32°F) |
Place of Manufacture |
Made in China |
Warranty |
24 Months in Australia |
