BlackVue B-112

B-112

Quick Links:

Getting Started

LED Indicators and Beeps

Warranty

Specifications

Getting Started

Everything you need to get started with your B-112 can be found in the below online manual. If you still have questions you can browse our FAQ section or reach out to our support team directly with the help button in the bottom right hand corner.


Getting stuck operating your product or attempting to perform a certain function? Check out our App Support and Battery Support categories which have a collection of detailed how-to guides and troubleshooting available.


B-112 - Product Manual

App Support

Battery Support

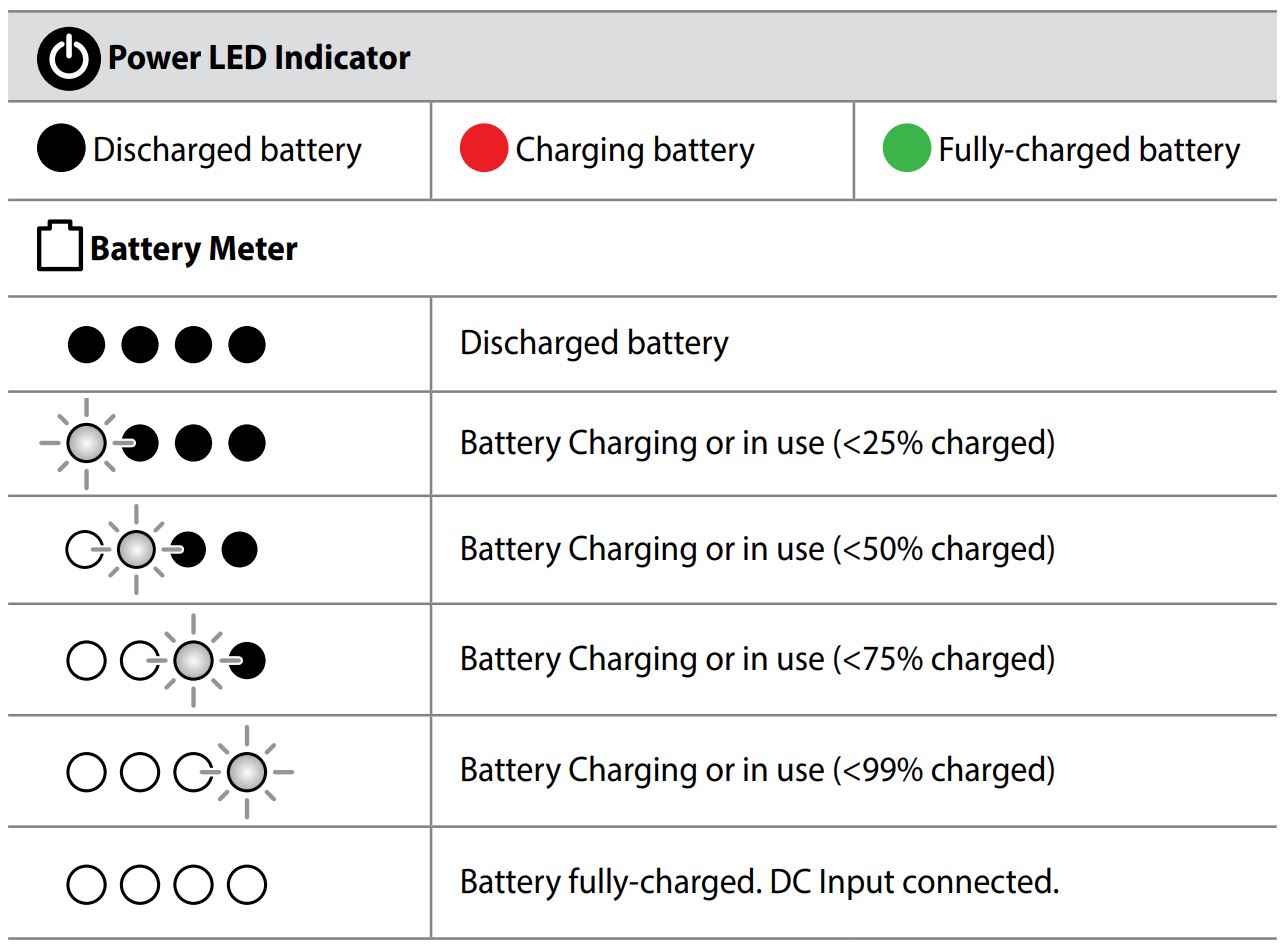

LED Indicators and Beeps




Warranty

All BlackVue B-112 battery packs purchased in Australia from authorised BlackVue dealers come with a 1-year limited hardware warranty from the original date of purchase.

In the unlikely event you experience a hardware fault with your accessory, it is best to contact your original retailer directly, or alternatively you can contact our support team directly on support@blackvue.com.au or by calling us on 1300 967 777 Monday-Friday 9am-3pm (AWST). You can also raise a warranty claim with us directly below.

Warranty Claim Returns Form



Specifications

Key Specifications

Model Name

B-112

Colour / Size / Weight

Black / 128 mm (W) x 102 mm (L) x 50 mm (H) / 550 g

Battery Cell Type

LiFePo4

Input Power

Cigarette lighter plug: 12 V – 24 V / 6.5 A (max)

Input Voltage / Current

MIN: 12 V / 6.5 A

MAX: 24 V / 3.65 A

Charging Voltage / Current

14.6 V / 3.5 A

Charging Time

Cigarette lighter plug: Approx. 1 hour

Hours of Use

Approx. 12 hours | 12 V / 3.4 Wh power consumption 1CH Dashcam

Operating Temperature

Charging Temperature: 0°C–45°C

Discharging Temperature: -20°C–60°C

Storage Temperature: -20°C–60°C

Capacity

12.8 V / 3000 mAh / 38.4 W

Quiescent Current

12.8 V / 5 mA

USB Power Output

MIN: 5 V / 100 mA

Output Voltage / Current

When charging from a 12 V cigarette lighter socket:

- 2 USB sockets: each 5 V / 2 A

- Dashcam: 12 V / 1 A


When charging from a 24 V cigarette lighter socket:

- 2 USB sockets: each 5 V / 2 A

- Dashcam: 24 V / 0.5 A


When discharging the battery:

- 2 USB sockets: each 5 V / 2 A

- Dash cam: 12.8 V / 1 A

Place of Manufacture

Made in Korea

Warranty

12 Months in Australia
